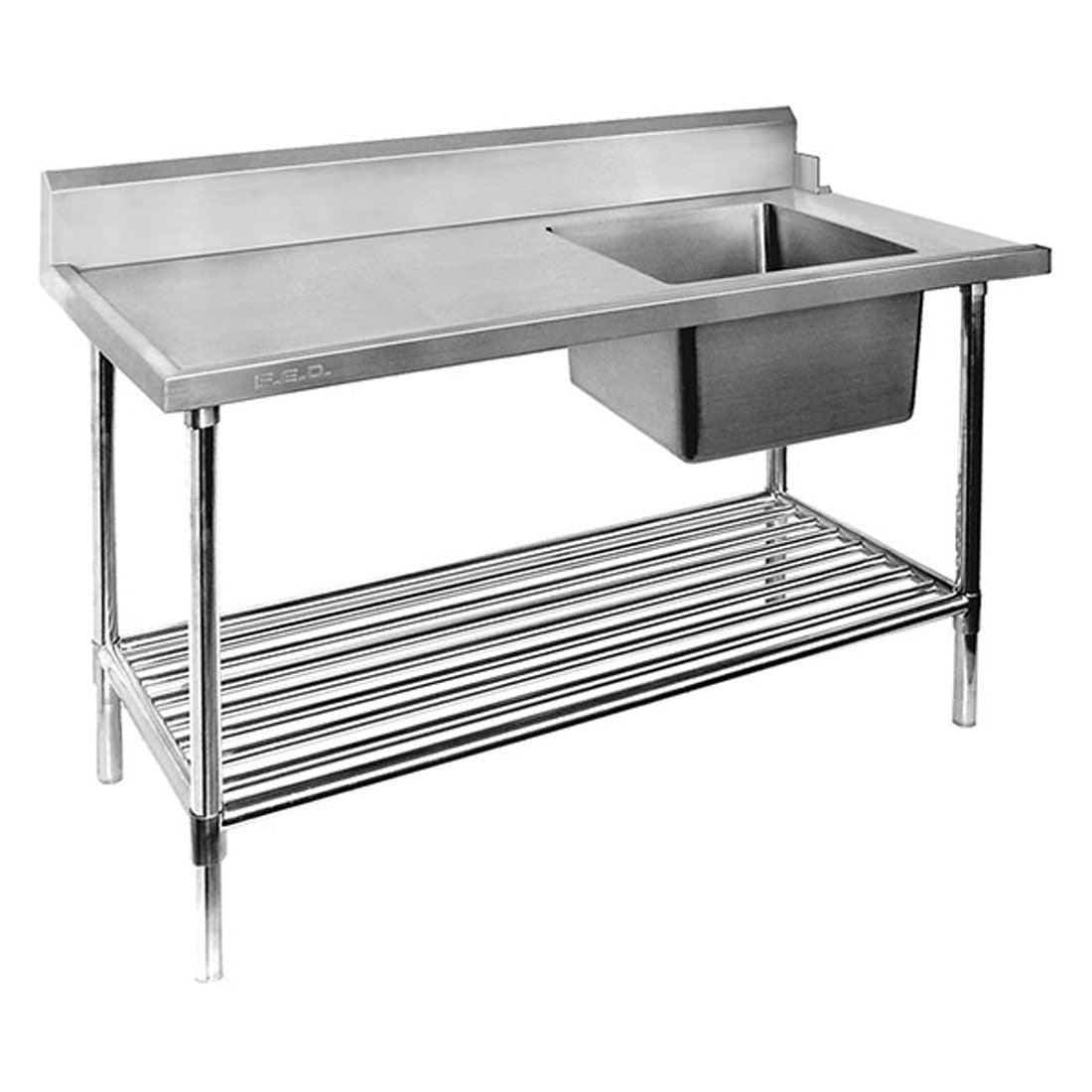

Modular Systems Right Inlet Single Sink Dishwasher Bench 1800 × 700 × 900 SSBD7 – 1800R/A

Modular Systems Right Inlet Single Sink Dishwasher Bench 1800 × 700 × 900 SSBD7 – 1800R/A for commercial food-service, hospitality and workspace applications.

Features and Specifications

• All Stainless Steel Right Inlet Single Sink Dishwasher Inlet Bench - SSBD7-1800R/A
• 1800mm wide
• • 700mm deep × 900mm high
• • Bowl size 450mmW×450D×300H; 90mm Ø drain hole
• • specially designed for quick & simple assembly
• • come with instruction manual & tools
• • supplied flat-packed for ease of transport
• • 4 legs per bench
• - 2100 & 2400mm wide benches have 6 legs
• • 1.2mm Stainless Steel
• • 15mm wet edge
• • right bowl positioning
• • bowls are fully welded, polished inside & out
• • 90mm Ø drain hole
• Splashbacks
• • Stainless Steel backed • 150mm high; 30mm thick
• • bevelled • fully enclosed
• Legs
• • 1.2mm Stainless Steel; 42mm Ø
• • fully adjustable Stainless Steel polished disc feet that match the legs perfectly
• • castor kits available (lockable)
• Benchtops
• • 1.2mm material; SUS304 (18/8)
• • lined with XPS board, 15mm thick & Stainless Steel panel
• • special Stainless Steel ‘U’ channel reinforcements under
• - as the bench size increases so does the number of channels
• Note
• LEFT side sink inlet bench
• When facing the bench the dishwasher inlet & sinks are on the left side.
• RIGHT side sink inlet bench
• When facing the bench the dishwasher inlet & sinks are on the right side. 2 Years Parts only Warranty
